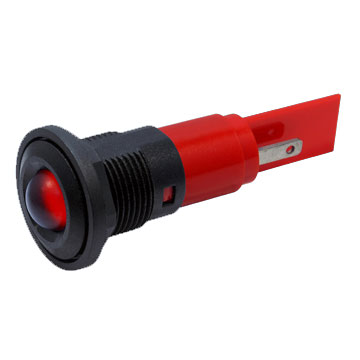

19401130 Ledindicator 16mm 130VAC red with black chrome reflector

19401130

LED indicators for flush mounting, diameter 16+0.2mm are equipped with a diffuse flush 10mm LED in different colours. Choice of 3 lens shapes, round, flat or conical. A bright LED in the same colour is mounted behind the lens. The connection is made by means of flat-plug connectors 2.8x0.8mm.

These fittings are also available in other voltages and sizes on request.

Maximum material thickness 11mm. VDE approved, UL approved.

30 years of experience always a solution for your problem

Available 24/7 anytime, anywhere access

Technical information available via datasheets

Order history can be accessed at any time

We make thát extra step for you as a customer

Article	Nominale spanning	Spanningstype	Kleur	Gross price

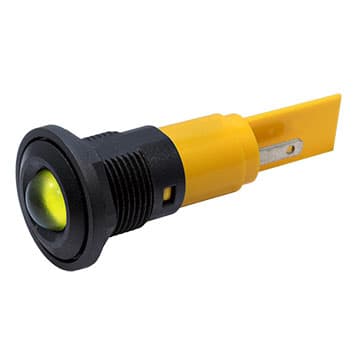

19401132	130	AC	Yellow	€ 8,15

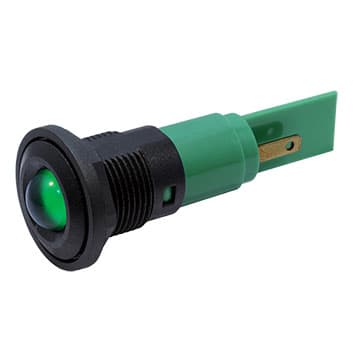

19401135	130	AC	Green	€ 11,13

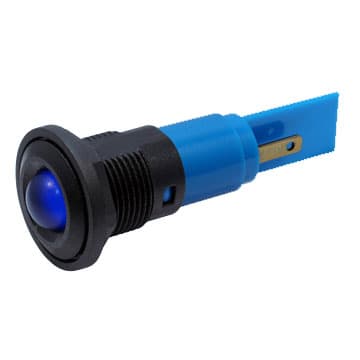

19401137	130	AC	Blue	€ 11,13
19401230	230	AC	Red	€ 8,15

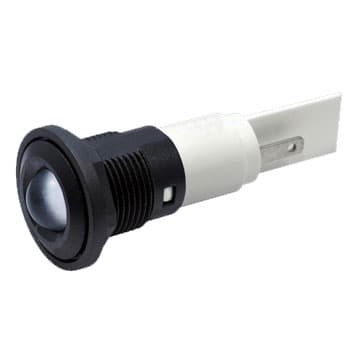

1940113W	130	AC	White	€ 11,13
19401232	230	AC	Yellow	€ 8,15
19401235	230	AC	Green	€ 11,13
19401237	230	AC	Blue	€ 11,13
1940123W	230	AC	White	€ 11,13
