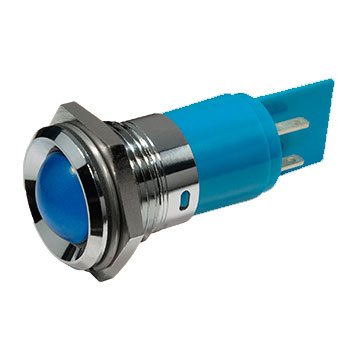

19530257 Ledindicator 22mm 12VDC blue with satin chrome bezel
19530257
LED indicators for flush mounting, diameter 22+0.2mm are equipped with a diffuse flush 20mm LED in different colours. Choice of 2 lens shapes, round or flat. A bright LED in the same colour is mounted behind the lens. The connection is made by means of flat-plug connectors 2.8x0.8mm.
These fittings are also available in other voltages and sizes on request.
Maximum material thickness 8,5mm.
30 years of experience always a solution for your problem
Available 24/7 anytime, anywhere access
Technical information available via datasheets
Order history can be accessed at any time
We make thát extra step for you as a customer
Accessoiries
195A1351UC Ledindicator 22mm 24VAC/DC green with black plastic bezel and bridge rectifier
€ 12,25
195F1232 Ledindicator 22mm 230VAC yellow with black plastic bezel and protection tube
€ 10,57
19570131 Ledindicator 22mm 130VAC green with satin chrome bezel
€ 14,08
195B1351UC Ledindicator 22mm 24VAC/DC green with black plastic bezel and bridge rectifier
€ 13,52
19570237 Ledindicator 22mm 230VAC blue with satin chrome bezel
€ 15,53
195B125WUC Ledindicator 22mm 12VAC/DC white with black plastic bezel and bridge rectifier
€ 10,40
19570232 Ledindicator 22mm 230VAC yellow with satin chrome bezel
€ 14,08
195B1350UC Ledindicator 22mm 24VAC/DC red with black plastic bezel and bridge rectifier
€ 9,83
195B1252UC Ledindicator 22mm 12VAC/DC yellow with black plastic bezel and bridge rectifier
€ 7,56
19530351 Ledindicator 22mm 24VDC green with satin chrome bezel
€ 12,32
195B1250UC Ledindicator 22mm 12VAC/DC red with black plastic bezel and bridge rectifier
€ 7,56
195A1250UC Ledindicator 22mm 12VAC/DC red with black plastic bezel and bridge rectifier
€ 7,56
