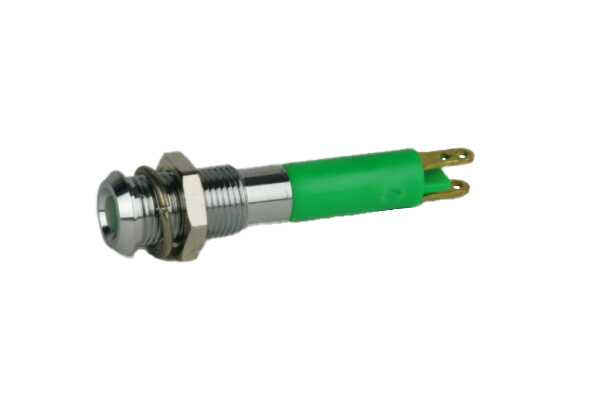

29000251 Ledindicator 3mm 12VDC green with satin chrome bezel

29000251

Quantity discount

LED indicators for flush mounting, diameter 6+0.2mm are equipped with a diffuse flush 3mm LED in different colours.

You can also solder these connections.

The LED fittings are mounted using the spring washers and nuts supplied.

These fittings are also available in other voltages and sizes on request.

Maximum material thickness 7mm. Protrudes just 1.5mm from the panel.

30 years of experience always a solution for your problem

Available 24/7 anytime, anywhere access

Technical information available via datasheets

Order history can be accessed at any time

We make thát extra step for you as a customer

Article	Nominale spanning	Spanningstype	Kleur	Gross price
29000252	12	DC	Yellow	€ 3,88
29000253	12	DC	Red	€ 3,88
29000254	12	DC	Rood/groen	€ 4,33
29000351	24	DC	Green	€ 3,88
29000352				€ 3,88
29000353				€ 3,88
29000354	24	DC	Rood/groen	€ 4,33
29000454	28	DC	Rood/groen	€ 4,33
29001252	12	DC	Yellow	€ 4,19
29001251	12	DC	Green	€ 4,19
29001351	24	DC	Green	€ 4,19
29001352	24	DC	Yellow	€ 4,19
29001253	12	DC	Red	€ 4,19
29001353	24	DC	Red	€ 4,19
29009251	12	DC	Green	€ 2,91
29009252	12	DC	Yellow	€ 2,91
29009253	12	DC	Red	€ 2,91
29009351	24	DC	Green	€ 2,91
29009352	24	DC	Yellow	€ 2,91
29009353	24	DC	Red	€ 2,91
29009451	28	DC	Green	€ 2,91
29009452	28	DC	Yellow	€ 2,91
29009453	28	DC	Red	€ 2,91
