CTL2_549 Switching element momentary illuminated 2 inverters goldcontact solder/faston 2,8x0,8mm
CTL2_549
30 years of experience always a solution for your problem
Available 24/7 anytime, anywhere access
Technical information available via datasheets
Order history can be accessed at any time
We make thát extra step for you as a customer
| Number of contacts | 2xwisselcontacten |
|---|---|
| Contact material | Gold |
| Connection | Soldering/faston connection 2,8x0,8mm |
| Schakelfunctie | Puls |
| Operating distance | 3 |
| Lampvoet | T5,5K |
| Type of contacts | Springcontact |
| Switching voltage | 48 |
| Type of voltage | AC/DC |
| Switching current (mA) | 1000 |
| Max. lamp voltage | 60V/1,2W |
| Brand | Schlegel |
Accessoiries

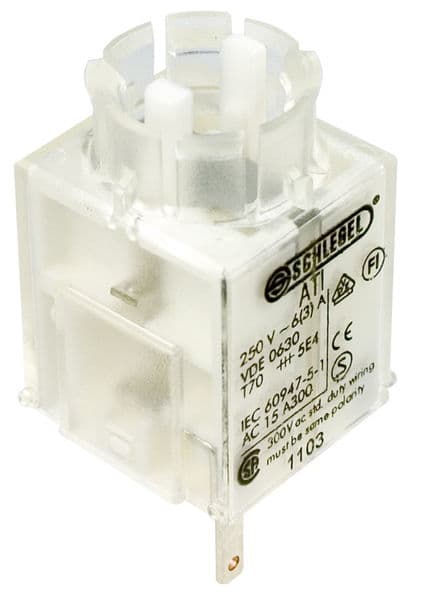

ATI_AU Switching element momentary non-illuminated 1NO goldcontact solder/faston 2,8x0,8mm
€ 4,64
ATO Switching element momentary non-illuminated 1NC silvercontact solder/faston 2,8x0,8mm
€ 3,95

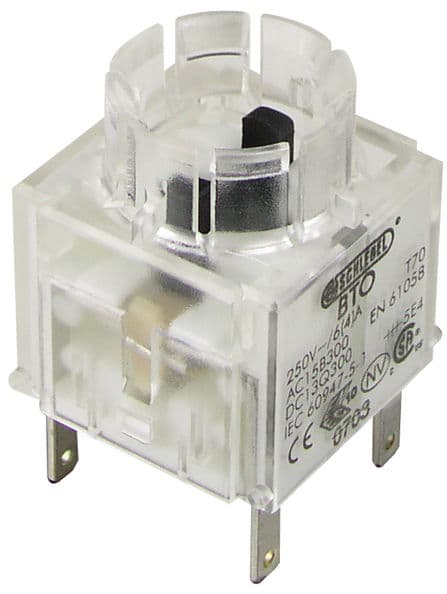

BTO Switching element momentary non-illuminated 2NC silvercontact solder/faston 2,8x0,8mm
€ 5,35

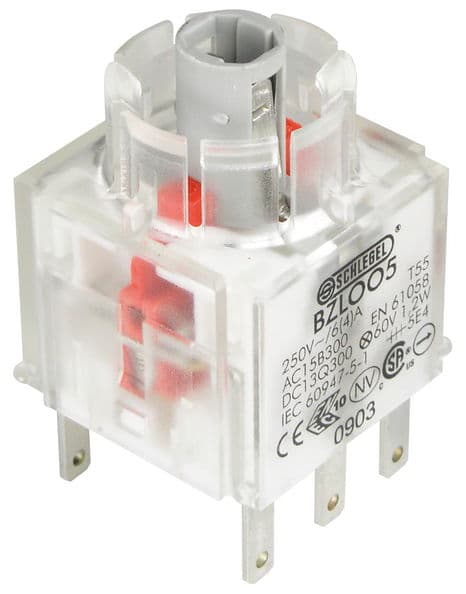

BZLOO5_AU Switching element momentary illuminated 2NC goldcontact solder/faston 2,8x0,8mm
€ 9,15

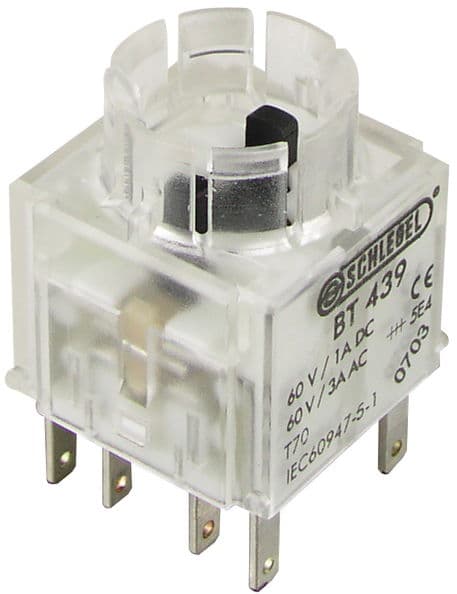

BT_439_AU Switching element momentary non-illuminated 2NO+2NC goldcontact solder/faston 2,8x0,8mm
€ 10,94
AZ011_AU Switching element momentary non-illuminated 1NO+1NC+1NO early make goldcontact solder/faston 2,8x0,8mm
€ 16,05

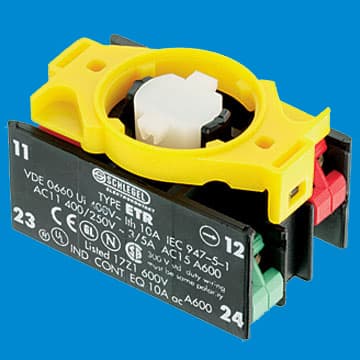

ETR Switching element momentary non-illuminated 1NO+1NC silvercontact screw connection 2,5mm²
€ 7,38
AZ111_AU Switching element momentary non-illuminated 1NO+1NC+1centre contact goldcontact solder/faston 2,8x0,8mm
€ 12,20

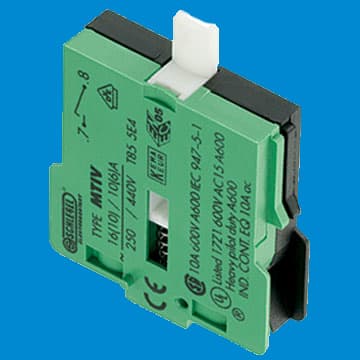

MTIV Switching element momentary non-illuminated 1NO early make silvercontact screw connection 2x 2,5mm²
€ 4,64
BZLII5K Switching element momentary illuminated 2NO silvercontact screw connection
€ 11,89
BZLI5K Switching element momentary illuminated 1NO silvercontact screw connection
€ 9,92
DTIV Switching element momentary non-illuminated 1NO (early make) silvercontact push-in connection
€ 4,87
