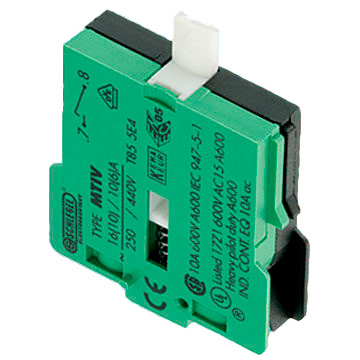

MTIV Switching element momentary non-illuminated 1NO early make silvercontact screw connection 2x 2,5mm²
MTIV
30 years of experience always a solution for your problem
Available 24/7 anytime, anywhere access
Technical information available via datasheets
Order history can be accessed at any time
We make thát extra step for you as a customer
| Number of contacts | 1xvoorijlend SV |
|---|---|
| Contact material | Zilver |
| Connection | Screw connection 2,5mm² |
| Schakelfunctie | Puls |
| Operating distance | 6 |
| Lampvoet | BA9s |
| Type of contacts | Mechanisch gedwongen |
| Switching voltage range | 250/400 |
| Type of voltage | AC |
| Switching current (A) | 3A/1.6A |
| Max. lamp voltage | 250V/2W |
| Brand | Schlegel |
